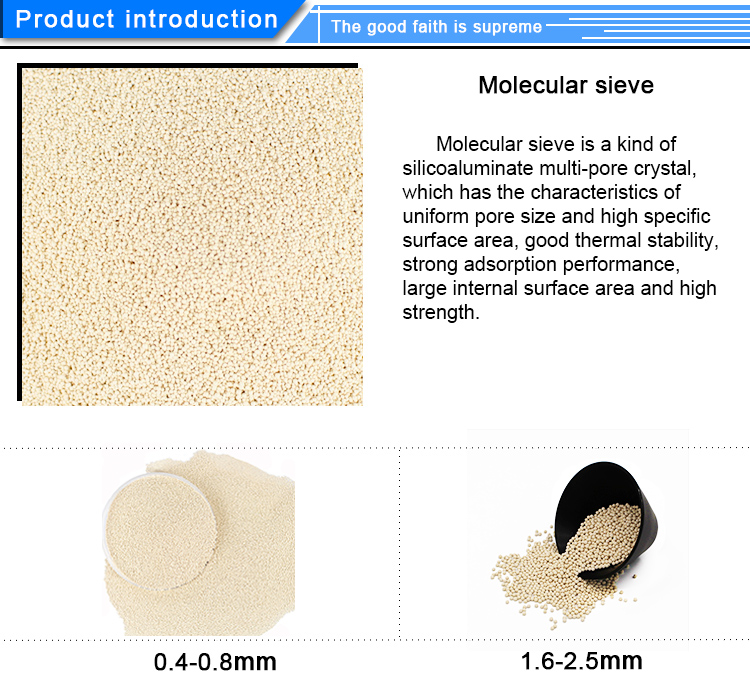

CHEMXIN high purity oxygen concentration sodium zeolite 13x hp molecular sieve 0.4-0.8mm 1.6-2.5mm for PSA oxygen generator

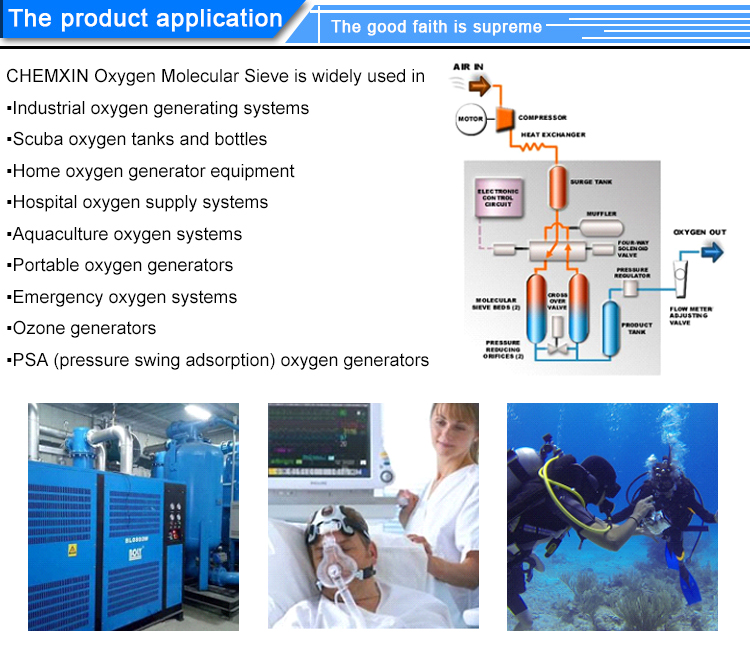

CHEMXIN oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market. Chemxin Molecular Sieve 13X HP is equal to molecular sieve jlox-501. Lithium based molecular sieve is equal to molecular sieve jlox-101.
Technical Parameter:
| Model | 13X HP Molecular Sieve | Lithium Based Molecular Sieve | ||
| Diameter | 0.4-0.8MM | 1.6-2.5MM | 0.4-0.8MM | 1.3-1.7MM |
| Bulk density | ≥0.62g/mL | ≥0.62g/mL | ≥0.63g/mL | ≥0.63g/mL |
| Crushing strength | / | ≥25N/piece | ≥15N/piece | |
| Static N2 Adsorption (1bar, 25°C) | ≥8mL/g | ≥8mL/g | ≥22.5mL/g | ≥22.5mL/g |
N2/O2 Separation (1bar, 25°C) | ≥3 | ≥3 | ≥6.2 | ≥6.2 |
| Attrition | ≤0.3wt.% | ≤0.3wt.% | ≤1wt.% | ≤1wt.% |
| Moisture Content | ≤0.5wt.% | ≤0.5wt.% | ≤0.5wt.% | ≤0.5wt.% |
| Application | Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min | Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour | Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min | Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour |
| Purity | 93%±3% | 93%±3% | 93%±3% | 93%±3% |
Hand & Storage Recommendation:
It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
Regenaration Method:
CHEMXIN molecular sieve can be regenerated by either heating in the case of thermal swing process or by lowering the pressure in the case of pressure swing process. Put the molecular sieve in a vacuum muffle furnace for 1 hour at 550℃.
Other types of molecular sieves
FAQ
1.What is difference between 13X HP Molecular Sieve & Lithium Based Molecular Sieve?
---Lithium Based Molecular Sieve N2 adsorption capacity is 2-3 times larger than 13X HP Molecular Sieve type.
---Lithium Based Molecular Sieve is low energy consumption for VPSA/PSA system. 13X HP Molecular Sieve is for PSA system.
---At the same time, Lithium Based Molecular Sieve has better wear resistance and longer service life.
2.How to choose correct size for my generator?
---0.4-0.8MM for portable oxygen generator in medical oxygen market.
---1.3-1.7mm/1.6-2.5MM for industrial oxygen plant in Ozone, Aquaculture fields.
3.How long is the shelf-life of molecular sieve?
----Normally 1-3 years,some clients use for 5 years.
