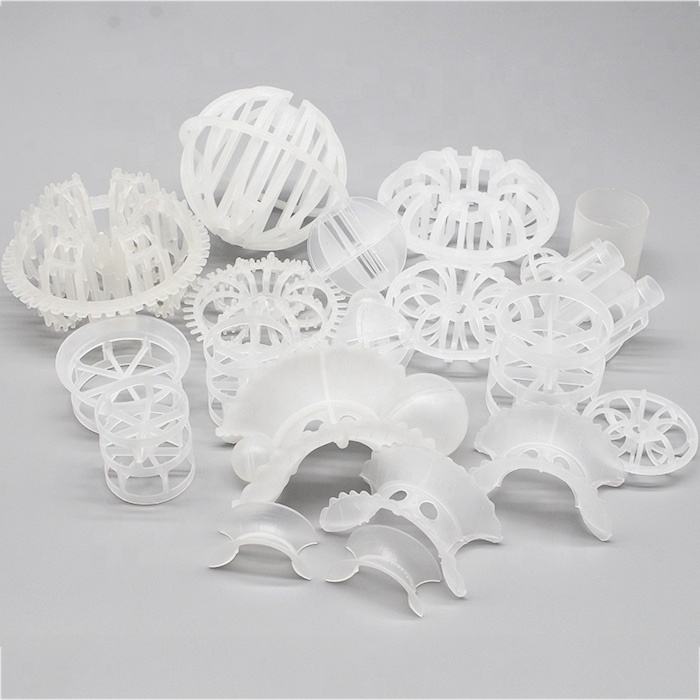

Chemxin tower random packing PP PE PVC plastic teller rosette ring for scrubbing towers and water treatment
Scrubber tower and water treatment packing tellerette ring:
Specified for a wide range of industrial packed tower systems, It has proven results in scrubber and filtration systems for chemical, pulp and paper, caustic chloride, petroleum and metals finishing and refining, water treatment , VOC removal, green house gas treatment, aquaculture and fish farming.
More than ever energy conservation is at issue, and it offers major cost benefits to scrubbing systems. With maximum active surface contact between gas and scrubbing liquid, operating efficiencies are optimized and lower packing depth results minimize tower costs.
Technical Parameter
| Model | Tellerate Rosette Ring | |||||||
| Material | PP, RPP, PE, PVC, CPVC, PVDF, etc. | |||||||
| Spec of PP Teller Ring | Dg25(5-ring) | Dg47(8-ring) | Dg51(8-ring) | Dg59(12-ring) | Dg73(12-ring) | Dg95(18-ring) | Dg145(20-ring) | |
| D*H*T | (mm) | 25*9*1.5*2 | 47*19*3*3 | 51*19*3*3 | 59*19*3*3 | 73*28*3*4 | 95*37*3*6 | 145*48*3*6 |
| Number per m³ | PCS | 170000 | 32500 | 23500 | 17500 | 8000 | 3900 | 1100 |
| Bulk density | (Kg/m³) | 90 | 111 | 103 | 72 | 80 | 78 | 48 |
| Surface area | (m²/m³) | 195 | 185 | 180 | 150 | 127 | 94 | 65 |
| Free volume | (%) | 82 | 88 | 98 | 92 | 89 | 90 | 95 |
| Typical Application | Absorption, scrubbing and stripping services | |||||||
| Package : | Jumbo bag; | |||||||
| M.O.Q: | 1 CBM | |||||||
| Payment Terms: | T/T; L/C; PayPal; West Union | |||||||
| Warranty: | a) By National Standard HG/T 21556.3-1995 | |||||||
| b) Offer lifetime consultation on problems occurred | ||||||||
| Container | 20GP | 40GP | 40HQ | Normal order | Minimum Order | Sample order | Specification of PP teller rosette ring | |
| Quantity | 25 CBM | 54 CBM | 68 CBM | <25 CBM | 1 CBM | < 5 pcs | ||
| Delivery Time | 7 days | 14 days | 20 days | 7 Days | 3 days | Stock | ||
| Comments: | Customized making is allowed. | |||||||
