Introduction

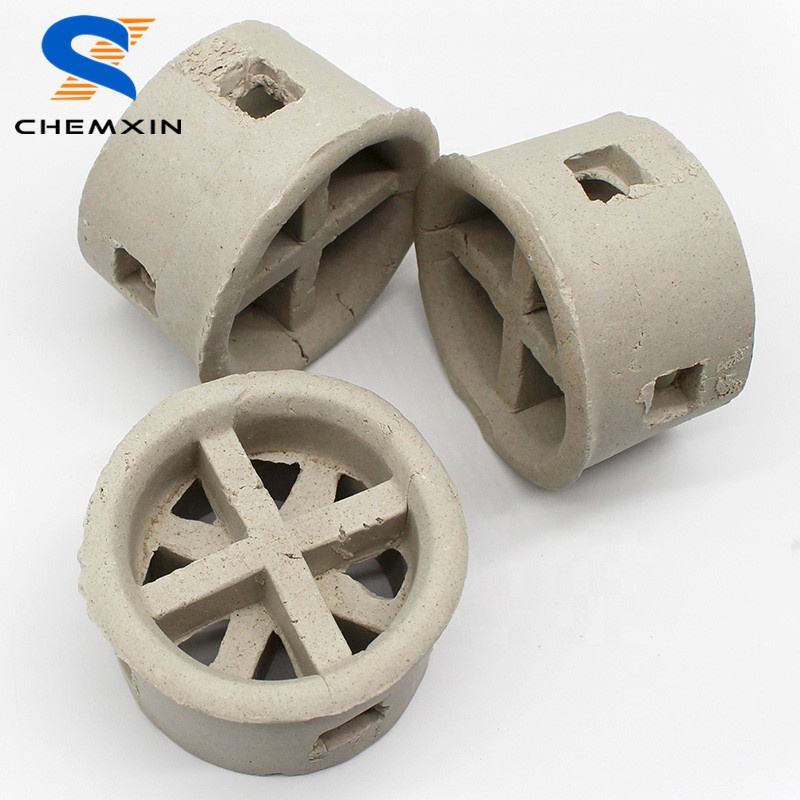

| Model: | Cascade Mini Ring | |||||
| Shape: | Ring | |||||
| Color: | Light Grey | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | Fe2O3 | CaO | K2O+Na2O | ||
| >70% | 23-30% | <1% | <1-2% | <2-4% | ||
| Physical properties | ||||||
| Index | Value | |||||
| Specific gravity(g/cm3) | 2.25-2.35 | |||||
| Water absorption(%) | <0.5 | |||||
| Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 | |||||
| Firing temperature(Degree C) | 1280-1320 | |||||
| Softening point(Degree C) | >1400 | |||||
| Density(kg/m3) | 2350 | |||||
| Technical data | ||||||
| Diameter (mm) | D*H*T (mm) | Surface area (m2/m3) | Free volume (%) | Number per m3 | Bulk density (Kg/m3) | Dry Packing Factor (m-1) |
| 25 | 25*20*3 | 270 | 74 | 74000 | 624 | 172 |
| 50 | 50*30*5 | 108.8 | 78.7 | 9091 | 516 | 223 |
| 76 | 76*45*7 | 63.4 | 79.5 | 2517 | 426 | 126 |
Typical Application:
a) Have excellent acid resistance and heat resistance.
b)It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.
c)Used in high or low temperature conditions.
d)Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
