| Quantity: | |
|---|---|
Technical Parameter:

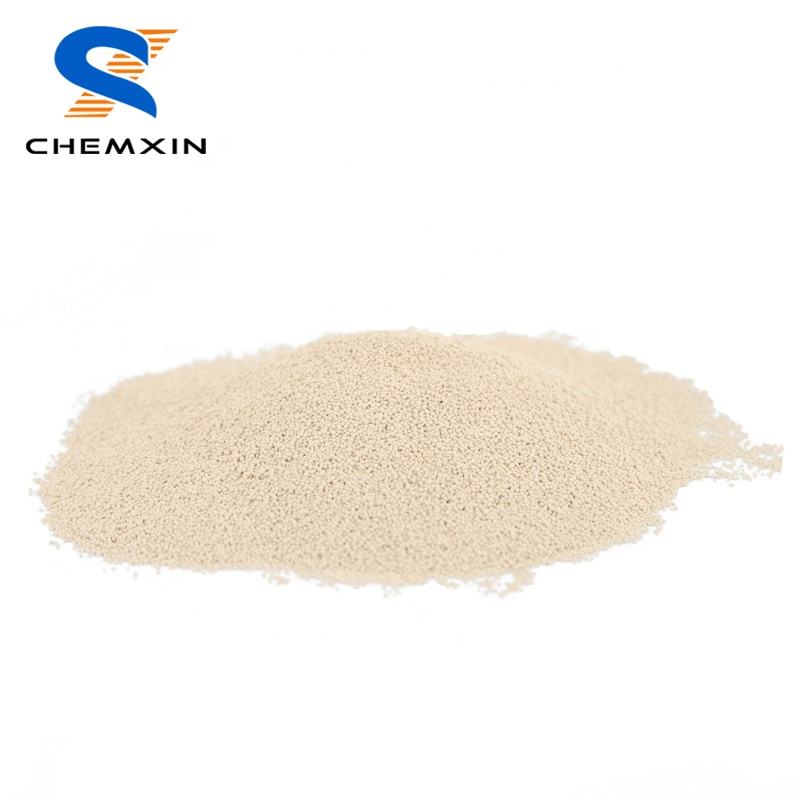

Model | Lithium based molecular sieve | |
Color | Light gray | |
Shape | Sphere (ball) | |
Diameter | 0.4-0.8mm | 1.3-1.7mm |
Bulk density | ≥0.63g/mL | ≥0.63g/mL |
Crushing strength | / | ≥15N/piece |
Static N2 adsorption(1bar, 25°C) | ≥22.5mL/g | ≥22.5mL/g |
N2/O2 seperation(1bar, 25°C) | ≥6.2 | ≥6.2 |
Attrition | ≤1wt.% | ≤1wt.% |
Moisture Content | ≤0.5wt.% | ≤0.5wt.% |
Molecular Sieve 13X HP is mainly used in PSA oxygen concentrators and oxygen concentrators device, and as well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc.
Technical Parameter:

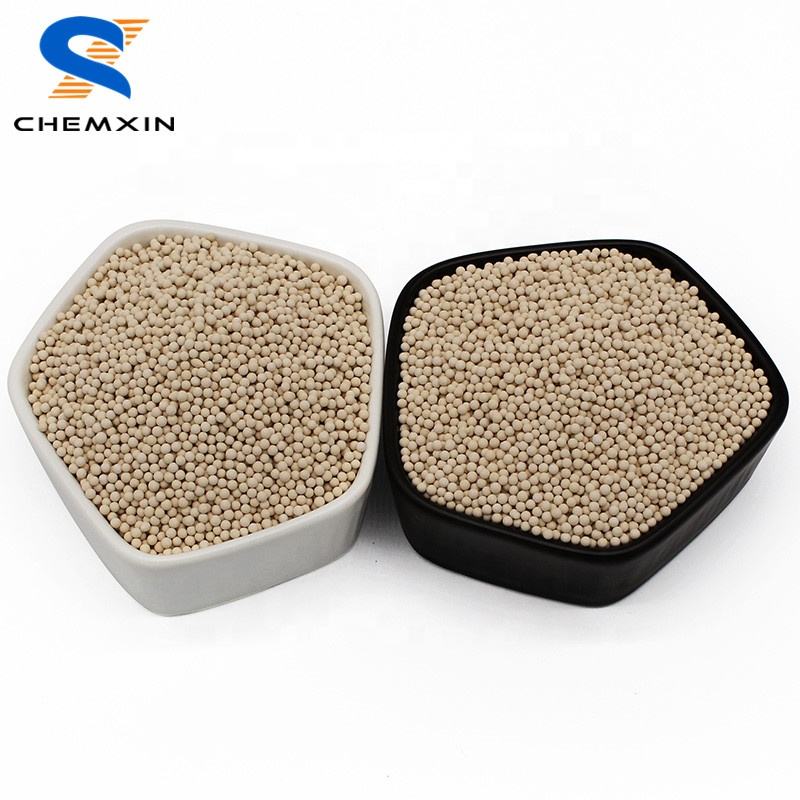

| Model | 13X HP | |
| Color | Light gray | |
| Nominal pore diameter | 10 angstroms | |
| Shape | Sphere (ball) | |
| Diameter (mm) | 0.4-0.8 | 1.6-2.8 |
| Loss on Ignition (wt%.575℃, 1hr) | ≤1.0 | ≤1.0 |
| Bulk density (g/ml) | ≥0.62 | ≥0.62 |
| Crushing strength (N) | / | ≥30/piece |
| Static H2O capacity (wt% RH60%,25℃) | ≥30 | ≥30 |
| Static CO2 capacity(wt% 250mmHg, 25℃) | ≥19.8 | ≥19.8 |
| Attrition (wt%) | ≤0.2 | ≤0.2 |
| Particle Ration (%) | ≥95 | ≥97 |
| N2 capacity(ml/g,) | ≥8 | ≥8 |
| N2/O2 Selectivity(a,) | ≥3 | ≥3 |
Hand & Storage Recommendation:
It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
Regenaration Method:
CHEMXIN molecular sieve can be regenerated by either heating in the case of thermal swing process or by lowering the pressure in the case of pressure swing process. Put the molecular sieve in a vacuum muffle furnace for 1 hour at 550℃.
1.What is difference between 13X HP Molecular Sieve & Lithium Based Molecular Sieve?
---Lithium Based Molecular Sieve N2 adsorption capacity is 2-3 times larger than 13X HP Molecular Sieve type.
---Lithium Based Molecular Sieve is low energy consumption for VPSA/PSA system. 13X HP Molecular Sieve is for PSA system.
---At the same time, Lithium Based Molecular Sieve has better wear resistance and longer service life.
2.How to choose correct size for my generator?
---0.4-0.8MM for portable oxygen generator in medical oxygen market.
---1.3-1.7mm/1.6-2.5MM for industrial oxygen plant in Ozone, Aquaculture fields.
3.How long is the shelf-life of molecular sieve?
----Normally 1-3 years,some clients use for 5 years.
